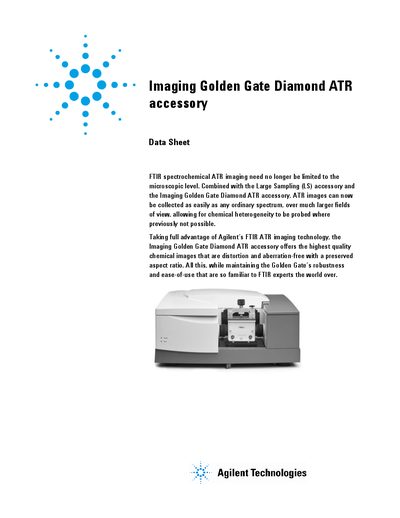

Imaging Golden Gate Diamond ATR accessory Data Sheet
The Imaging Golden Gate Diamond ATR accessory allows FTIR spectrochemical ATR imaging over large fields of view without being limited to the microscopic level. It combines with the Large Sampling (LS) accessory to collect images easily as ordinary spectra, probing chemical heterogeneity previously impossible to analyze.
This accessory offers distortion and aberration-free chemical images while maintaining robustness and ease-of-use. Key benefits include maximizing productivity by requiring little or no sample preparation, preserving precious samples without destruction, analyzing challenging materials like powders and rocks with ease, and performing hot, cold, and in-situ experiments using various top plate options.
| FPA Size: 16x 16 | Total Area Sampled: 160 x 160 microns; Spatial Resolution: 10 x 10 microns |
|---|---|
| FPA Size: 32x 32 | Total Area Sampled: 320 x 320 microns; Spatial Resolution: 10 x 10 microns |
| FPA Size: 64x 64 | Total Area Sampled: 640 x 640 microns; Spatial Resolution: 10 x 10 microns |
Little or no sample preparation is required; simply clamp your sample in place to obtain full 2D chemical infrared images.
Yes, a variety of top plate options are available to perform chemical imaging experiments from 200 °C down to near liquid nitrogen temperatures.
