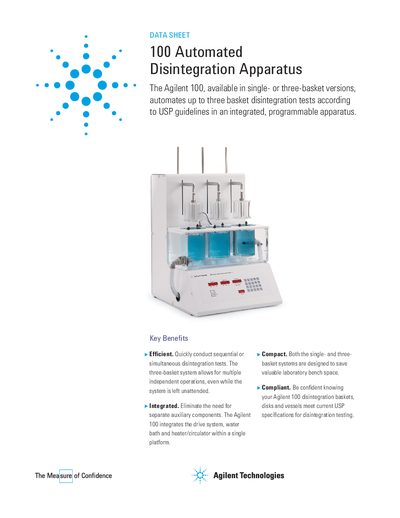

The Agilent 100 Automated Disintegration Apparatus is an automated system for conducting disintegration tests on dosage forms, following USP guidelines. It is efficient, compact, and features an integrated design with programmable capabilities.
The Agilent 100 Automated Disintegration Apparatus is a compact, integrated system designed to automate up to three basket disintegration tests simultaneously or sequentially. It combines the drive system, water bath, and heater/circulator into a single platform to save laboratory bench space while ensuring compliance with USP specifications.
Key programmable capabilities include independent control of up to three separate test baskets via an easy-to-use keypad. The system features temperature-controlled water baths that can be programmed to specific temperatures and maintained throughout the test duration, allowing for precise testing conditions.
| Altitude | 0 - 2000 m (0 - 6562 ft.) |
|---|---|
| Temperature range | 5 to 40°C |
| Humidity (non-condensing) | Not more than 80% RH |
| Voltage requirements | 115/60 Hz, 230 V/50 Hz |
| Dip speed | 30+1 DPM |
| Stroke length | 5.5+0.1 cm |
| Water bath temperature range | Ambient + 5 to 55 °C |
| Beaker volume | 1000 mL |
| Disintegration beaker inner diameter | 97-115 mm |
| Equipment weight (dry with 3 baskets) | 29.7 kg (65.5 Ib) |
The apparatus automates basket disintegration tests according to USP guidelines.
Yes, the user can direct independent control of up to three separate test baskets for either simultaneous or sequential operation.
No, an optional printer is available for hard-copy printouts.
