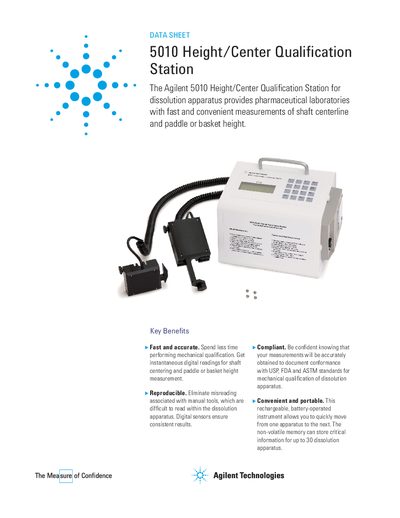

The document describes the Agilent 5010 Height/Center Qualification Station, which provides pharmaceutical laboratories with fast and convenient measurements of shaft centerline and paddle or basket height, ensuring accurate and reproducible calibration.
The Agilent 5010 Height/Center Qualification Station is designed for pharmaceutical laboratories to perform fast and accurate mechanical qualification of dissolution apparatus. It provides digital readings for shaft centering and paddle or basket height, ensuring compliance with USP, FDA, and ASTM standards. The device eliminates the need for manual interpretation by using NIST-calibrated sensors.
| Height range | 22.0- 28.0 mm |
|---|---|
| Centerline range | 0.0-3.0mm |
| Battery | 7.2-volt |
| Memory | Up to 30 apparatus at 8 vessels per apparatus |
| Dimensions (Height) | 18.5 cm (7.26 in.) |
| Dimensions (Width) | 24.1 cm (9.5 in.) |
| Dimensions (Depth) | 19.7 cm (7.76 in.) |
| Equipment weight | 3kg (6.6 Ib) |
The LCD panel displays results to + 0.1 mm when measurements are performed.
The non-volatile memory stores measurements on each position for up to 30 dissolution apparatus with a maximum of eight vessels per apparatus.
The LCD panel displays results to + 0.1 mm when measurements are performed.
