Crimp Tool for Connectors.

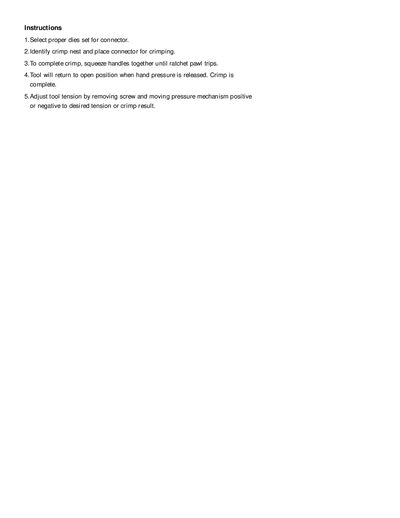

This manual provides instructions for operating a ratchet crimp tool. It covers selecting the appropriate dieset for specific connectors and identifying the correct crimp nest on the connector.
To complete a crimp, the user must squeeze the handles together until the ratchet pawl trips. The tool will automatically return to an open position when hand pressure is released, indicating the crimp is finished. Additionally, users can adjust the tool tension by removing a screw and moving the pressure mechanism positive or negative to achieve the desired result.
Squeeze the handles together until the ratchet pawl trips.
The tool returns to the open position when hand pressure is released.
