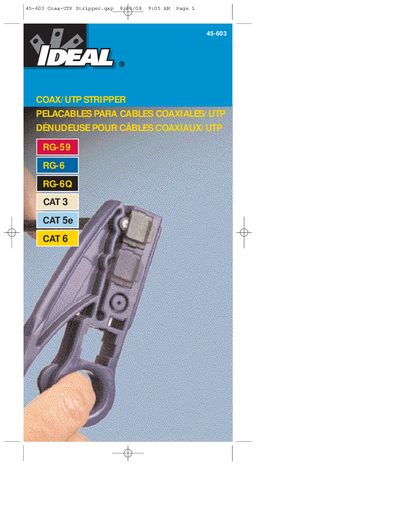

Ideal 45-603 Coax/UTP Stripper Instructions

About this manual

This document provides operating instructions for the Ideal 45-603 Coax/UTP Stripper. It describes the tool's components, including the primary and secondary strip cartridges, tension arm, and push-on rings for connector termination. The manual includes multilingual instructions (English, Spanish, French) for stripping coaxial and twisted pair cables to a desired length.

What's inside

• Strip Examples
• Cartridge Options
• Warranty
• Customer Assistance
• Instructions
• Instrucciones
• Mode d'emploi
• Spare strip cartridge
• Tension Arm
• Top Grip

Frequently asked questions

What steps are required to remove the cut pieces of cable after stripping?

After completing the strip turns, either pull the cable from the tool while holding the tension arm, or open the tool by squeezing the Top Grip to manually twist off the cut pieces.

Can I use the push-on ring to help seat coax connectors?

Yes, you can use the push-on ring if desired to help seat coax connectors fully onto the cable dielectric.
