PDZ-2B series is a 0° power divider/combiner produced by Merrimac. It has a wide frequency range of 1-1800MHz, wide bandwidth, low power consumption and light weight.

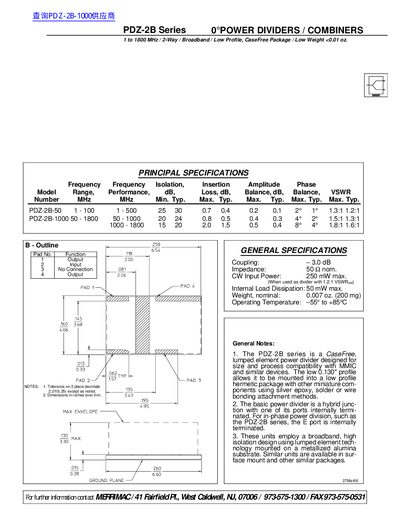

This document provides technical data for the MACOM PDZ-2B Series of 0° power dividers and combiners. These devices operate in frequency ranges from 1 to 1800 MHz and are designed as two-way broadband components with a low profile case-free package.
The datasheet details principal specifications including insertion loss, amplitude balance, phase balance, VSWR, and isolation for various models (PDZ-2B-50, PDZ-2B-1000). It also lists general specifications such as maximum input power, operating temperature range, and physical dimensions.
| Frequency Range (Model PDZ-2B-50) | 1 - 100 MHz |
|---|---|
| Frequency Range (Model PDZ-2B-1000) | 50 - 1800 MHz |
| Impedance | 50 Q nom. |
| CW Input Power | 250 mW max. |
| Operating Temperature | -55° to +85°C |
The maximum continuous wave input power is 250 mW.
The nominal impedance is 50 ohms.
The units operate from -55°C to +85°C.
