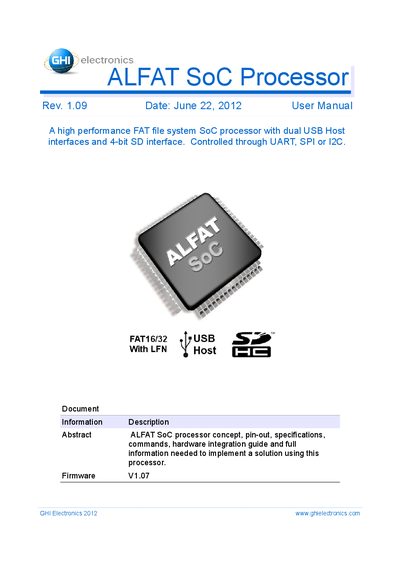

ALFAT SoC processor concept, pin-out, specifications, commands, hardware integration guide and full information needed to implement a solution using this processor. A high performance FAT file system SoC processor with dual USB Host interfaces and 4-bit SD interface. Controlled through UART, SPI or I2C.
The GHI Electronics ALFAT SoC Processor is a high-performance ARM Cortex-M3 processor designed to provide a FAT file system engine with built-in SD and USB host drivers. It allows host systems to access files on SD cards and USB mass storage devices with minimal resources through UART, SPI, or I2C interfaces. The processor supports FAT16 and FAT32 file systems, including licensed Long File Name (LFN) support from Microsoft, and can access two USB mass storage devices and one memory card simultaneously.
| Processor Architecture | ARM Cortex-M3 |
|---|---|
| File System Support | FAT16 and FAT32 |
| USB Interfaces | Dual USB Host |
| SD Interface | 4-bit SD interface |
| Max File Access Speed (SD) | 4000 KBytes/sec |
| Max File Access Speed (USB HS) | 4000 KBytes/sec |
| Max File Access Speed (USB FS) | 1000 KBytes/sec |
| Power Consumption (Operational) | 38mA |
| Power Consumption (Hibernate) | 5mA |
| Operating Temperature | -40°C to +85°C |
The processor can be controlled through UART, SPI, or I2C interfaces.
Yes, it supports Long File Names (LFN) licensed by Microsoft for commercial use.
It is capable of accessing two USB mass storage devices simultaneously.
The maximum file access speed on SD cards is up to 4000 KBytes/sec.
