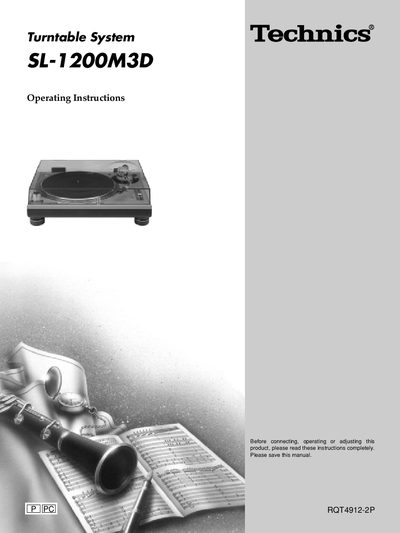

This manual provides operating instructions for the SL-1200M3D turntable system.
This manual provides operating instructions for the Panasonic SL-1200M3D turntable. It details the supplied accessories, safety precautions, and step-by-step assembly procedures including fitting the turntable mat and attaching the head shell with the tone arm.
The guide covers connections to audio equipment, installation on a horizontal surface, and critical adjustments such as pitch control reset, stylus pressure, anti-skating, and tone arm height. It also includes troubleshooting tips and technical specifications.
| Wow and flutter | below 0.01% |
|---|---|
| Starting torque | 1.5 kg/cm |
| Speed range accuracy | -8 and +8% |
| Power consumption | 14 W |
The starting torque is 1.5 kg/cm, enabling the turntable to reach 33 1/3 rpm in 0.7 seconds.
You can use the pitch control reset button to instantly reset the speed to the rated speed of 33 1/5 or 45 rpm.
The pitch can be varied between -8 and +8% with accuracy maintained throughout the range.
