Yamaha DMR8 Multitrack Recorder User Manual

About this manual

The document provides a comprehensive guide to setting up the Yamaha DMR8 within various studio configurations. It details requirements for analog sources, including AD converters and microphone amplifiers, as well as connections for mastering recorders like DAT or composite video VTRs. The manual illustrates system diagrams for minimum setups, video post-production workflows, and 16-track recording expansions using other Yamaha units.

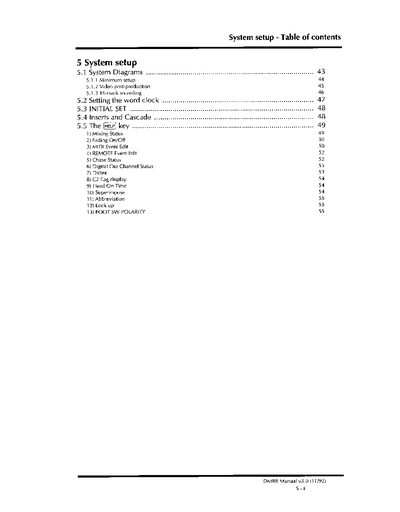

What's inside

• System Diagrams
• Setting the word clock
• Initial Set styles
• Inserts and Cascade
• The HELP key menu
• MIXDOWN mode controls
• CH MODULE mode controls

Frequently asked questions

What equipment is required to record from analog sources on the DMR8?

An 8-channel AD converter, such as the YAMAHA AD8xX, is essential for recording from analog sources.

What amplifier is needed if microphones are used as sound sources?

A microphone amplifier like the YAMAHA HAS8x is required to bring the signal level up and provide phantom powering.

How many preset styles are available for system setup parameters?

There are ten preset styles, labeled PO through P9.
