This document is an instruction manual that explains how to connect, operate, and adjust this product. The product can be powered by household AC power or dry cell batteries. Insert memory batteries to save stored CD programs and radio stations. If memory batteries are not used, memory items are erased in situations such as power failures or when the power cord is disconnected from the unit. The batteries need to be replaced approximately once a year. When using household AC power, ensure that the power cord is firmly connected. To conserve power, unplug the unit from the household AC power outlet when it is not going to be used for a long time.

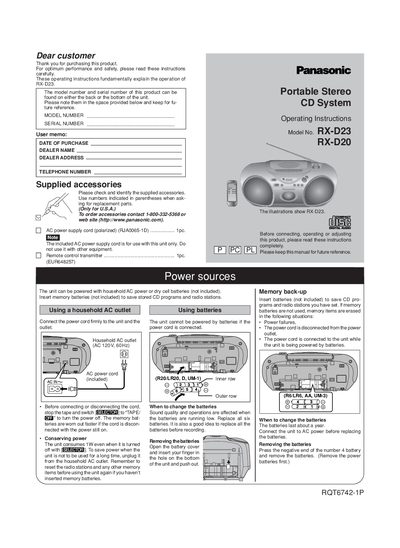

This manual provides operating instructions for the Panasonic RX-D23 portable stereo CD system. It details the setup of the unit, including power connections and battery installation for the remote control and memory backup. The guide explains how to use the supplied accessories and the function of the main unit controls.
| AC Power | AC 120V, 60Hz |
|---|---|
| Maximum Preset Stations | 12 FM and 12 AM |
| Maximum Programmed Tracks | 24 tracks |
| Memory Backup | Requires batteries |
Insert memory batteries (not included) into the unit to save stored CD programs and radio stations.
You can preset 12 FM stations and 12 AM stations.
