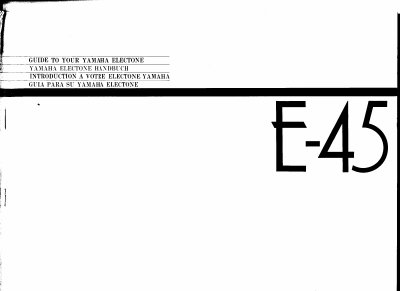

Welcome to the world of music with your new Yamaha E-45 Electone. This manual is designed to help you familiarize yourself with the unique features and functions of this instrument to realize its full potential. Please read it carefully before attempting any service checks or requesting technical assistance, as improper operation may void the manufacturer's warranty.
The document covers essential topics including keyboard and pedal setup, tone lever adjustments, custom voice creation, and the use of automatic rhythm sequences. It also details troubleshooting steps for common issues and provides specific safety instructions for mounting the pedal board and electrical connections.
It must always be carried by 2 persons, and under no circumstances should any extraordinary force be used.
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or caloured BLACK.
