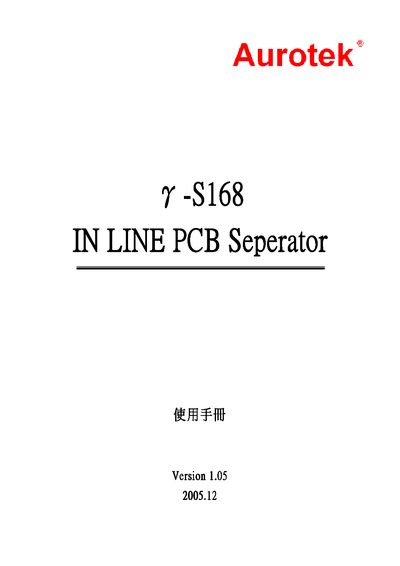

This document is the user manual for the γ–S168 IN LINE PCB Seperator produced by Aurotek. The product is a device used for cutting printed circuit boards, featuring a dual-belt conveyor and a cross-over mechanical arm.
The Y‑S168 IN LINE PCB Separator is an automated cutting system that transports printed circuit boards via a belt conveyor, positions them with a vacuum‑gripped robotic arm, and cuts them with a high‑speed spindle. The machine uses AC servo motors, precision ball‑screw drives, and a CCD vision system to achieve high accuracy while minimizing dust and protecting operator safety.
The manual covers pre‑operation safety precautions, warranty terms, installation requirements (environment, power and air supply), detailed specifications, external I/O connections, operation panel functions, example programs, and maintenance procedures. It also includes appendices with axis parameters and service instructions. This manual is written in Chinese.
| Board size | 250 mm W × 330 mm L |
|---|---|
| Cutting accuracy | +0.1 mm |
| Spindle speed | 15,000–60,000 rpm |
| Overall dimensions | 2550 mm L × 1550 mm W × 1810 mm H |
| Rated power | 3‑phase AC 220 V, 3.0 kW |
| Weight | 1050 kg |
The warranty lasts for 12 months from shipment or up to 3,000 spindle operating hours, whichever occurs first.
The machine requires an external AC 220 V three‑phase power source of at least 3.0 kW, with a grounded power cable.
