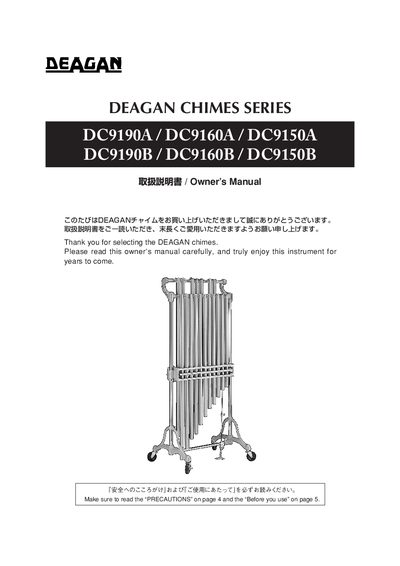

DEAGAN DC9190A DC9160A DC9150A DC9190B DC9160B DC9150B owner's Manual

About this manual

This document serves as the Owner's Manual for Deagan Chimes Series models DC9190A, DC9160A, DC9150A, and their B variants. It is designed to ensure the safe use of the instrument by outlining critical precautions for setup, operation, and maintenance.

The manual emphasizes safety measures to prevent injury, noting that the chimes are large and heavy instruments. It provides specific weight data for the models (DC9190 is approx. 76kg; DC9160/9150 is approx. 57kg) and details proper lifting techniques, such as holding the base while supporting the side columns. It also covers safe moving procedures, including the use of casters, avoiding slopes, and disassembling the instrument before moving it up or down stairs.

What's inside

• Safety Precautions
• Cautions when setting the instrument
• Cautions for treatment of the instrument
• Cautions when moving the instrument
• Weight specifications
• Lifting instructions
• Moving instructions
• Hammer usage

Specifications

Frequently asked questions

What is the weight of the DC9190 chimes?

The weight of the DC9190 is approximately 76kg.

What is the approximate weight of the DC9190 chime?

The DC9190 chime weighs approximately 76kg.

How should the chimes be lifted when they must be moved?

Lift them by holding the base section and supporting the side column while keeping the hanger section upright.
