This document is the specification for CJP011000DB, providing information such as product size, material, package type, package quantity, etc.

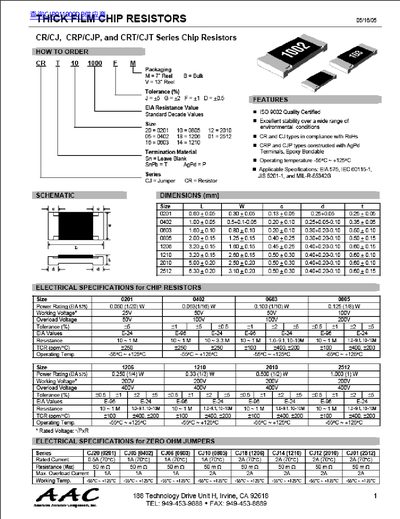

This document provides technical specifications for the CR/CJ, CRP/CJP, CRT, and CJT series of thick film chip resistors manufactured by American Accurate Components. It covers standard sizes from 0201 to 2512, detailing power ratings, tolerances, temperature coefficients, and operating temperatures in compliance with EIA standards.
| Series Types | CR/CJ, CRP/CJP, CRT/CJT |
|---|---|
| Product Type | Thick Film Chip Resistors |
| Standard Quality Certification | ISO 9002 |
| Tolerance Options | +5%, +2%, +1% |
| Zero Ohm Resistance (Max) | 50 mΩ |
The document lists M for a 7" Reel, V for a 13" Reel, and B for Bulk.
The maximum power rating for a 0201 size chip resistor is 0.050 W.
The maximum resistance value included in the E-24 Engineering Kit is 1 MΩ.
