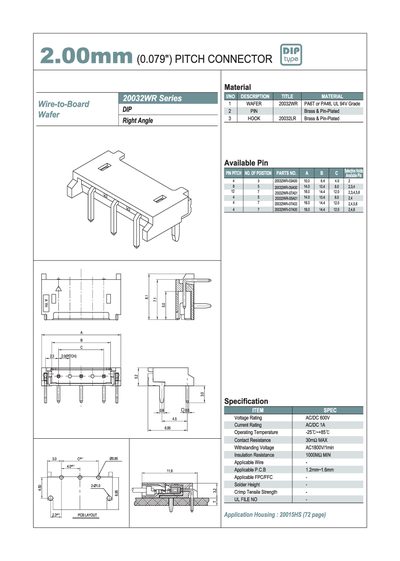

This document provides specifications for the VEE 20032WR Series, a 2-pin right-angle DIP connector designed for wire-to-board applications. The housing is made of PA6T or PA46 material rated UL 94V Grade.
Key electrical ratings include an AC/DC voltage rating of 600V and a current rating of 1A. The operating temperature range spans from -25°C to +185°C, with a contact resistance maximum of 30mΩ.
| Pitch | 2.00mm (0.079") |
|---|---|
| Number of Positions | 2 PIN |
| Configuration | Right Angle |
| Voltage Rating | AC/DC 600V |
| Current Rating | 1A |
| Operating Temperature | -25°C~+185°C |
| Contact Resistance | 30mΩ MAX |
| Withstanding Voltage | AC1800V/1min |
The AC/DC voltage rating is 600V.
The contact resistance must be a maximum of 30mOhms.
