The document describes the features and characteristics of the VTC1 series products, including high performance, small size, low cost, frequency range, input voltage, output, pulling range, stability, temperature range, stability, etc.

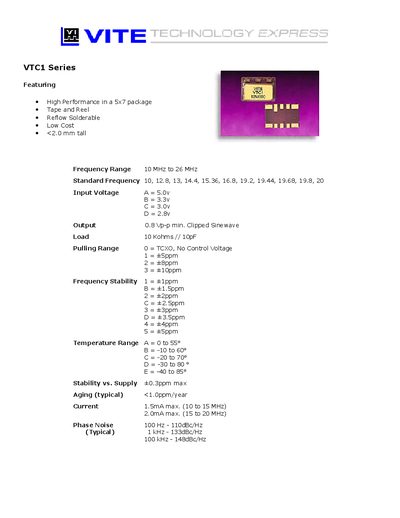

This document provides a datasheet overview of the VITE Technology VTC1 Series oscillators. Key features include a compact 5x7 mm tape and reel package with reflow solderability and low cost. The device operates within a frequency range of 10 MHz to 26 MHz.
| Frequency Range | 10 MHz to 26 MHz |
|---|---|
| Standard Frequencies | 10, 12.8, 13, 14.4, 15.36, 16.8, 19.2, 19.44, 19.68, 19.8, 20 |
| Package Size | 5x7 mm |
| Output Load | 10 Kohms // 10pF |
| Frequency Stability (TCXO) | +5ppm to +5ppm |
| Phase Noise @ 1 kHz | -133dBc/Hz |
The device supports a frequency range from 10 MHz to 26 MHz.
Yes, the datasheet lists 'Reflow Solderable' as a key feature.
The typical phase noise specification is -133dBc/Hz at 1 kHz offset.
