ASD07H series is 7 watt open frame DC/DC converter with 4:1 input range, high efficiency, regulated outputs, 1500V isolation and integral finned heatsink, approved by EN60950 and UL60950-1.

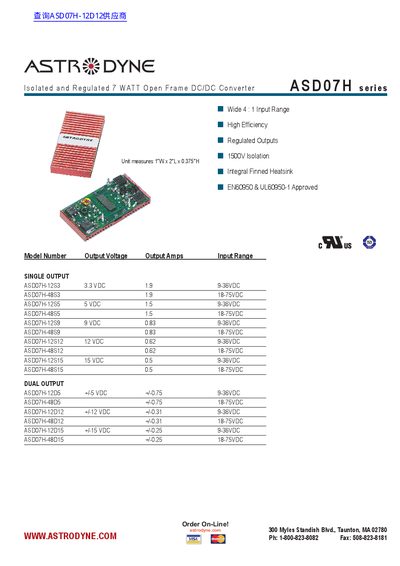

The document describes the Astrodyne ASD07H series, which are isolated and regulated 7-watt open frame DC/DC converters. These units feature a wide 4:1 input range, high efficiency, and regulated outputs with 1500V isolation. They are designed with an integral finned heatsink and are approved for EN60950 and UL60950-1 standards.
| Isolation Voltage | 1500VDC (48V) |
|---|---|
| Efficiency | 82% typ |
| Switching Frequency | 450Khz |
| Operating Temperature | -25 to +71 C (FL) |
| Weight | 0.57 oz |
The input voltage range for 12V models is 9-36 VDC.
The input voltage range for 48V models is 18-75 VDC.
Yes, the series is UL60950-1 approved.
