The document provides information about the A5209C1 supplier, including the features and characteristics of the product.

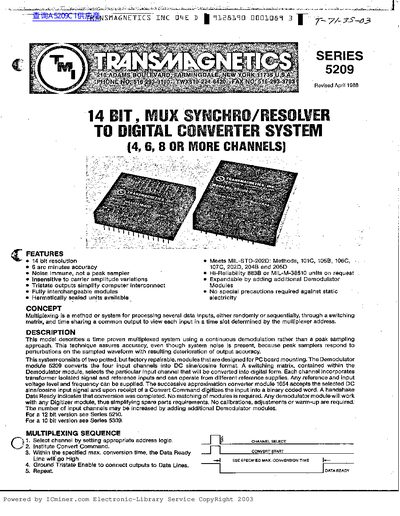

The Transmagnetics 5209 Series is a 14-bit Mux Synchro/Resolver to Digital Converter System designed for high-reliability applications. It utilizes a continuous demodulation approach rather than peak sampling, ensuring accuracy even in the presence of system noise. The system consists of interchangeable Demodulator and Digitizer modules that can be expanded by adding additional channels.
| Resolution | 14 bits |
|---|---|
| Accuracy | +6 arc minutes |
| Storage Temperature | -55°C to +105°C |
| Power Requirement (Analog) | +15 VDC +5% at 60 mA |
| Power Requirement (Logic) | +5 VDC +/-15% at 20 mA |
The system provides a resolution of 14 bits.
No, no calibrations, adjustments, or warm-up are required for operation.
