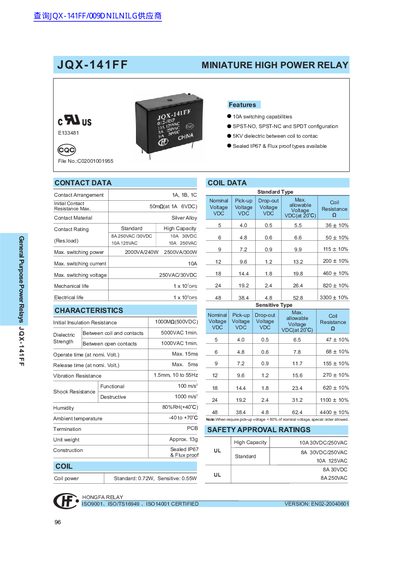

This document is a technical datasheet for the Hongfa JQX-141FF series of miniature high power relays. It provides comprehensive specifications including contact ratings (up to 10A), coil data for various voltages, and environmental resistance features such as IP67 sealing.
| Switching capabilities | 10A |
|---|---|
| Contact Arrangement | SPST-NO, SPST-NC and SPDT configuration |
| Dielectric strength (coil to contact) | 5KV |
| Protection rating | Sealed IP67 & Flux proof types available |
| Contact Material | Silver Alloy |
| Mechanical life | 1x 10^8 ops |
| Electrical life | 1x 10^6 ops |
The available DC coil voltages are 5, 6, 9, 12, 18, 24, and 48VDC.
The maximum switching power is 2000VA/240W for standard types and 2500VA/300W for high capacity.
The ambient temperature range is from -40 to +70°C.
