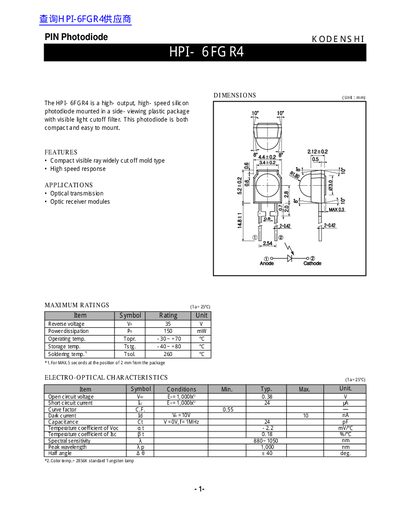

The HPI-6FGR4 is a high-output, high-speed silicon photodiode mounted in a side-viewing plastic package with a visible light cutoff filter. This photodiode is both compact and easy to mount.
The Koden HPI-6FGR4 is a high-output, high-speed silicon photodiode mounted in a side-viewing plastic package with a visible light cutoff filter. It is designed to be compact and easy to mount, making it suitable for applications requiring optical transmission and optical receiver modules.
The document provides maximum ratings, electro-optical characteristics, and graphical data regarding light current, short circuit current, dark current, forward voltage, illuminance, ambient temperature, and spectral sensitivity. Key specifications include a reverse voltage rating of 35V and an operating temperature range of -30 to +70°C.
| Power dissipation | 150 mW |
|---|---|
| Operating temp. | -30~ +70 °C |
| Storage temp. | -40~ +80 °C |
| Soldering temp. | 260 °C |
| Spectral sensitivity | 880~ 1050 nm |
The peak wavelength is 1,000 nm.
The maximum reverse voltage is 35 V.
The maximum power dissipation is 150 mW.
