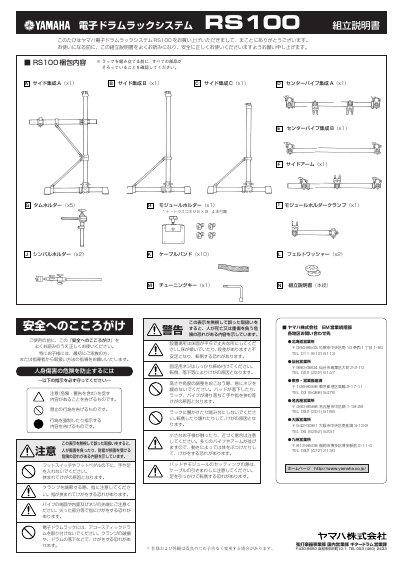

Yamaha RS100 Electronic Drum Rack System Assembly Manual

About this manual

This document is an assembly manual for the Yamaha RS100 Electronic Drum Rack System. It provides a detailed list of included parts, such as side assemblies, holders, and modules. The manual emphasizes safety precautions regarding the installation of the rack on flat surfaces and the handling of cables and clamps to prevent injury. This manual is written in Japanese.

What's inside

• Rack Stand Parts
• Safety Precautions
• Assembly Steps
• Module Holder Installation
• Cymbal Holder Installation
• Tom Holder Installation
• Cable Management
• Safety Symbols
• Contact Information
• Specifications
