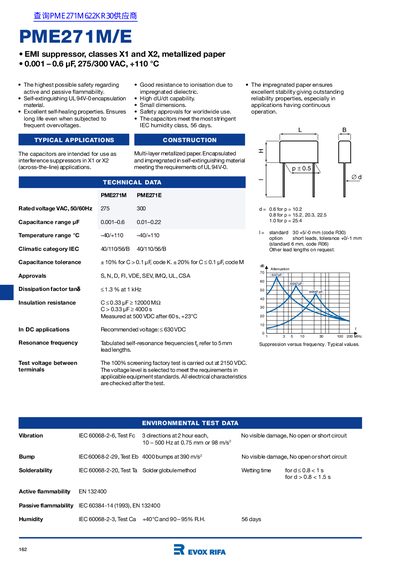

The document describes the features and characteristics of the PME271M/E model EMI suppressor. The product is a metallized paper capacitor designed for interference suppression applications in X1 or X2 categories. It has a capacitance range of 0.001 - 0.6 µF, rated voltage of 275/300 VAC, and temperature range of +110 °C. The capacitor is constructed with multiple layers of metallized paper and encapsulated in a self-extinguishing material that meets UL 94V-0 requirements. It complies with environmental and vibration test standards and has good solderability.
This document provides technical data and specifications for the Evox Rifa PME271M/E series of multi-layer metallized paper capacitors. These components are designed for use as interference suppressors in across-the-line applications, offering excellent stability and self-healing properties.
| Capacitance range | 0.001 - 0.6 nF |
|---|---|
| Dissipation factor tan delta | < 1.3 % at 1 kHz |
| Insulation resistance | > 12000 MΩ |
| Passive flammability | UL 94V-0 |
They are intended for use as interference suppressors in X1 or X2 and across-the-line applications.
The recommended voltage is 630VDC.
