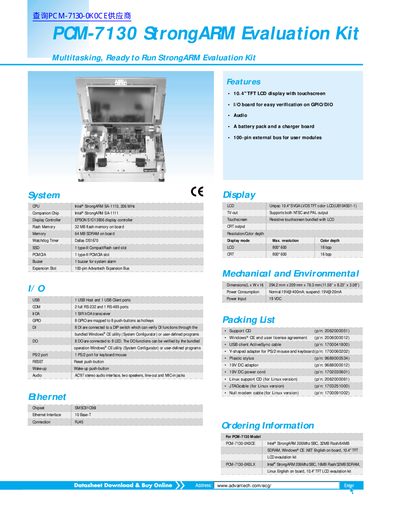

The PCM-7130 StrongARM Evaluation Kit is a multi-tasking, ready-to-run StrongARM evaluation kit from Advantech.
The Advantech PCM-7130 is a multitasking, ready-to-run evaluation kit designed for the Intel® StrongARM SA-1110 processor running at 206 MHz. It includes an integrated 10.4-inch SVGA LVDS TFT color LCD with a resistive touchscreen and supports both Windows CE.NET and Linux operating systems.
The system features extensive I/O capabilities, including a 100-pin external bus for user modules, audio interfaces, multiple serial ports (RS-232/RS-485), and USB host/client ports. It is equipped with 64 MB of SDRAM and 32 MB or 16 MB of flash memory depending on the configuration.
| CPU | Intel® StrongARM SA-1110, 206 MHz |
|---|---|
| Display | 10.4" SVGA LVDS TFT color LCD |
| Flash Memory | 32 MB flash memory on board |
| Memory | 64 MB SDRAM on board |
| Dimensions | 204.2 mm x 209 mm x 78.3 mm |
| Power Consumption (Normal) | 19V@400mA |
The system supports a maximum resolution of 800*600 for CRT output.
The device consumes 19V at 20mA when suspended.
