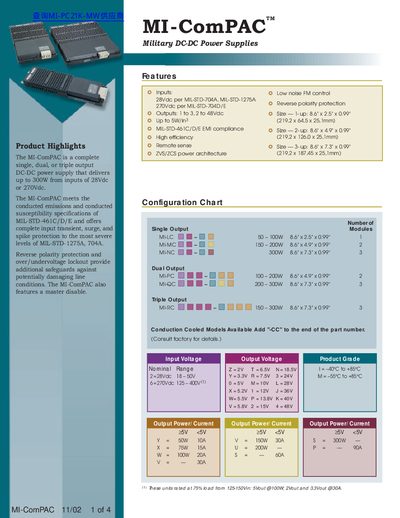

The MI-ComPAC is a complete single, dual, or triple output DC-DC power supply that delivers up to 300W from inputs of 28Vdc or 270Vdc. The MI-ComPAC meets the conducted emissions and conducted susceptibility specifications of MIL-STD-461C/D/E and offers complete input transient, surge, and spike protection to the most severe levels of MIL-STD-1275A, 704A. Reverse polarity protection and over/undervoltage lockout provide additional safeguards against potentially damaging line conditions. The MI-ComPAC also features a master disable.
The MI-ComPAC is a compact DC-DC power supply designed for military applications. It delivers up to 300W from input voltages of 28Vdc or 270Vdc, meeting conducted emissions and susceptibility specifications of MIL-STD-461C/D/E.
| Input Voltage (28Vdc) | 18 to 50 Vdc |
|---|---|
| Input Voltage (270Vdc) | 125 to 400 Vdc |
| Output Voltage Range | 1 to 3, 2 to 48Vdc |
| Maximum Power Output | Up to 300W |
| Efficiency | 81 % |
| Operating Temperature (Case) | +85 °C |
It meets conducted emissions and susceptibility specifications of MIL-STD-461C/D/E.
Yes, it features reverse polarity protection along with over/undervoltage lockout.
