The WD01 wireless controller is a multi-functional wireless communication device that supports 150MHz, 433MHz and 915MHz frequencies, and can be widely used in industrial control and monitoring, security systems, data telemetry, inventory control and monitoring, point-to-point or networked wireless systems, stand-alone monitoring and control, logging, GPS location applications, SCADA and HVAC.

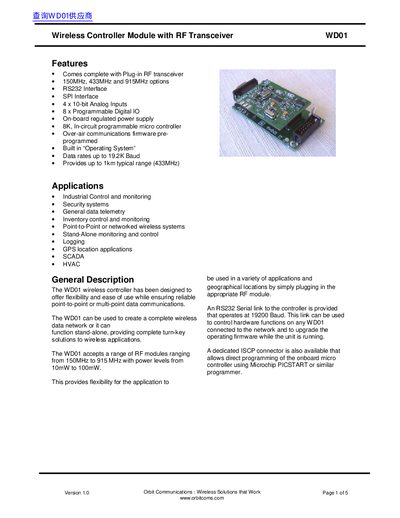

The Orbit Communications WD01 is a wireless controller module designed to offer flexibility and ease of use in point-to-point or multi-point data communications. It features an on-board regulated power supply and comes complete with plug-in RF transceivers supporting 150MHz, 433MHz, and 915MHz frequencies.
The device includes a Microchip PIC16F876 microcontroller with 8K program space, providing up to 1km typical range at 433MHz. It offers four 10-bit analog inputs (0-5V), eight programmable digital I/O pins, and an RS232 interface operating at speeds up to 19.2K Baud for control and firmware upgrades.
| Operating Temperature | -25°C to +85°C |
|---|---|
| Supply Voltage | 7V to 12V (Typ) |
| Analog Inputs | 4 x 10-bit |
| Data Rate (Max) | 19.2K Baud |
The module supports 150MHz, 433MHz, and 915MHz options.
The module provides up to 1km typical range.
