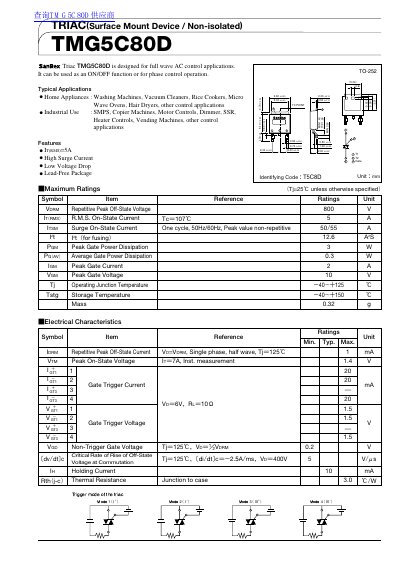

This document describes the maximum ratings and electrical characteristics of the TMG5C80D TRIAC. It is a surface mount device, non-isolated. The main features include a maximum repetitive peak off-state voltage of 800V, a maximum RMS on-state current of 55A, a maximum surge on-state current of 12.6A, and an operating junction temperature range of -40℃ to +125℃.
The TMG5C80D is a non-isolated surface mount device designed for full wave AC control applications. It supports both ON/OFF functions and phase control operations. Typical uses include home appliances such as washing machines, vacuum cleaners, rice cookers, microwave ovens, hair dryers, and industrial equipment like SMPS, copier machines, motor controls, dimmers, SSRs, heater controls, and vending machines.
Key features of this triac include an RMS on-state current (IT) of 5A, high surge current capability, low voltage drop, and a lead-free package. The datasheet provides comprehensive data on maximum ratings, including repetitive peak off-state voltage, gate trigger currents and voltages, and thermal resistance.
| Repetitive Peak Off-State Voltage (VDRM) | 800 V |
|---|---|
| Surge On-State Current (ITSM) | 12.6 A |
The device has a maximum repetitive peak off-state voltage rating of 800 V.
The RMS on-state current rating is 5 A.
