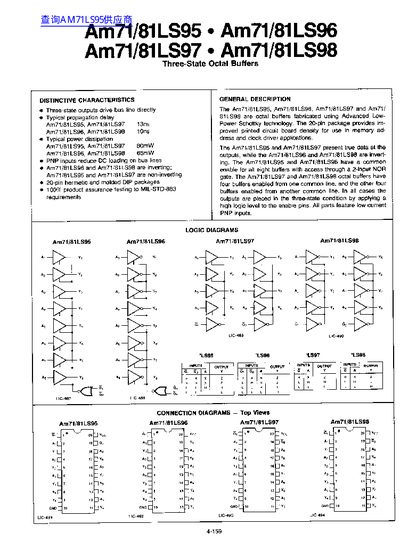

The Am71/81LS95, Am71/81LS96, Am71/81LS97, and Am71/81LS98 are octal buffers designed for memory address and clock driver applications. They feature three-state outputs that drive bus lines directly and utilize low current PNP inputs to reduce DC loading. The series includes both non-inverting and inverting variants, with specific enable configurations for controlling multiple buffers via common lines.
| Technology | Advanced Low-Power Schottky |
|---|---|
| Package Type | 20-pin hermetic and molded DIP |
| Storage Temperature | -65°C to +150°C |
| Supply Voltage | 0.5V to +7.0V |
| DC Output Current | 150mA |
Yes, the Am71/81LS96 and Am71/81LS98 are inverting buffers.
Outputs are placed in the three-state condition by applying a high logic level to the enable pins.
