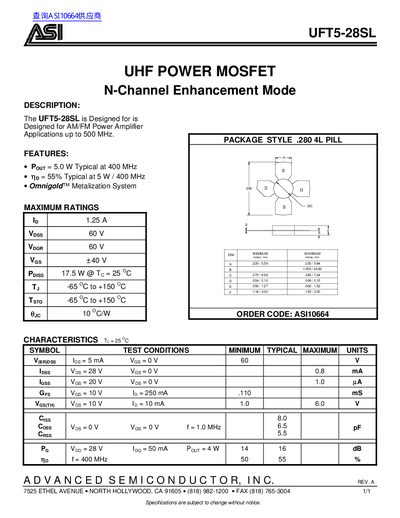

UFT5-28SL is an N-channel enhancement mode UHF power MOSFET designed for AM/FM power amplifier applications up to 500 MHz.
The UFT5-28SL is a Power MOSFET designed for AM/FM Power Amplifier Applications up to 500 MHz. Key features include a typical power output (Po) of 5.0 W at 400 MHz and an efficiency (Np) of 55% typical at 5 W / 400 MHz. The device utilizes the Omnigold™ Metalization System.
| Frequency Range | up to 500 MHz |
|---|---|
| Typical Efficiency | 55% |
| Maximum Continuous Drain Current | 1.25 A |
The UFT5-28SL is designed for AM/FM Power Amplifier Applications up to 500 MHz.
The typical power output is 5.0 W at 400 MHz.
The maximum power dissipation is 17.5 W at a case temperature of 25°C.
