The document describes the features and characteristics of the SKDI26 supplier's products.

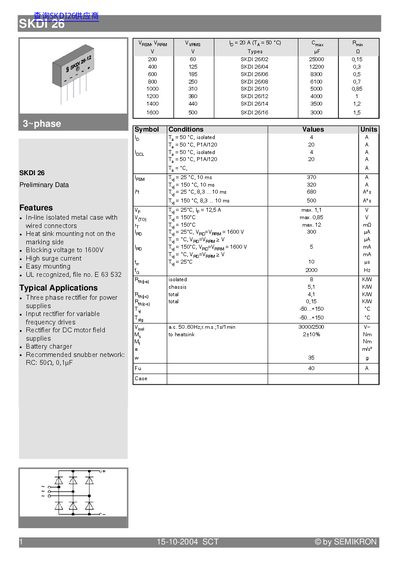

This document is a technical datasheet for the Semikron SKDI26 series of three-phase diode rectifiers. It provides preliminary data including rated currents, blocking voltages, and surge capabilities under various temperature conditions.
The datasheet includes detailed electrical characteristics such as forward voltage drop, leakage current, and power dissipation curves relative to output current and case temperature. It also lists typical applications like three-phase rectifiers for power supplies and variable frequency drives.
| Isolated Blocking Voltage (V_RRM) | 1600 V |
|---|---|
| Rated Current (I_T) | 20 A @ Tj=50°C, P1A/120 |
The device has a rated current of 20 A when the temperature is 50 °C.
The rectifier can block a voltage up to 1600 V.
