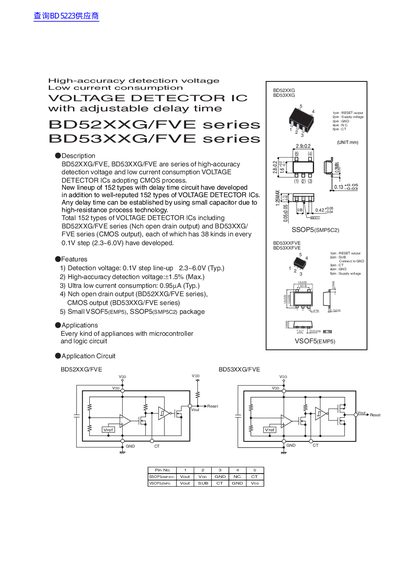

BD52XXG/FVE, BD53XXG/FVE series are series of high-accuracy detection voltage and low current consumption VOLTAGE DETECTOR ICs adopting CMOS process.
The document describes the BD52XXG/FVE and BD53XXG/FVE series as CMOS process voltage detector ICs featuring high accuracy and ultra-low current consumption. The new lineup includes 152 types offering an adjustable detection voltage from 2.3V to 6.0V in 0.1V steps, utilizing a small capacitor for delay time adjustment due to high-resistance process technology.
Key features include Nch open drain output for the BD52 series and CMOS output for the BD53 series. The ICs are available in SSOP5 (SMP5C2) or VSOFS5 (EMP5) packages and are designed for use with microcontrollers and logic circuits in various appliances.
| Detection voltage range | 2.3~6.0V (Typ.) |
|---|---|
| High-accuracy detection voltage | +1.5% (Max.) |
| Ultra low current consumption (Typ.) | 0.95uA |
| Operating temperature range | -40~+85 °C |
| Storage temperature range | -55 ~ +125 °C |
The BD52XXG/FVE series features an Nch open drain output.
The BD53XXG/FVE series features a CMOS output.
