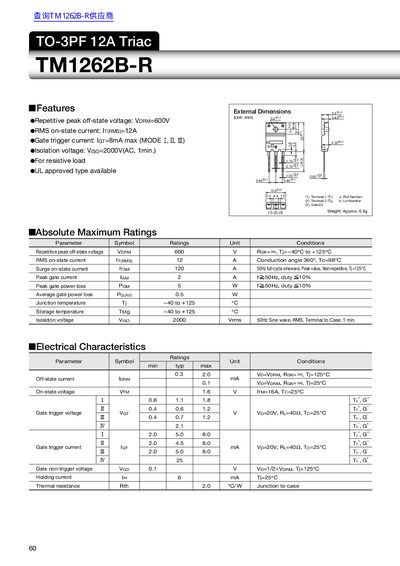

This document provides the absolute maximum ratings and electrical characteristics of the TM1262B-R TO-3PF 12A Triac, including repetitive peak off-state voltage, RMS on-state current, and gate trigger current.
This document provides technical specifications for the TO-3PF TM1262B-R Triac. Key features include a repetitive peak off-state voltage of 600V and an RMS on-state current of 12A. The device is UL approved and available in external dimensions suitable for various applications.
| Repetitive peak off-state voltage | 600 V |
|---|---|
| RMS on-state current | 12 A |
| Gate trigger current (max) | 8mA |
| Isolation voltage | 2000V |
| Junction temperature range | -40 to +125 °C |
The maximum repetitive peak off-state voltage is 600 V.
The maximum RMS on-state current is 12 A.
The maximum gate trigger current is 8 mA.
