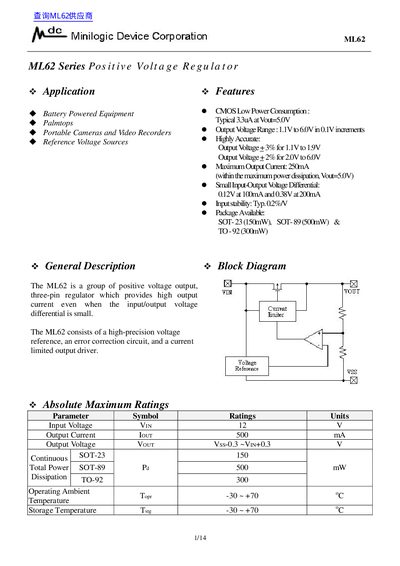

The ML62 series positive voltage regulator is a high-precision three-pin regulator suitable for battery-powered equipment, palmtops, portable cameras and video recorders, reference voltage sources, etc. It features low power consumption, wide output voltage range, high accuracy, high maximum output current, and small input-output voltage differential.
The Minilogic ML62 is a three-pin positive voltage regulator designed for battery-powered equipment, palmtops, and portable cameras. It features high output current capability even with a small input-to-output voltage differential, making it suitable for applications where input voltage is close to the required output voltage. The series includes various output voltage options ranging from 1.1V to 6.0V.
| Output Voltage Range | 1.1V to 6.0V |
|---|---|
| Maximum Output Current | 250mA |
| Supply Current (Typical) | 3.3uA |
| Input Voltage (Max) | 12 V |
| Package Types | SOT-23, SOT-89, TO-92 |
The typical supply current is 3.3uA at Vout=5.0V.
The maximum output current is 250mA within the maximum power dissipation limits.
The ML62 is available in SOT-23, SOT-89, and TO-92 packages.
