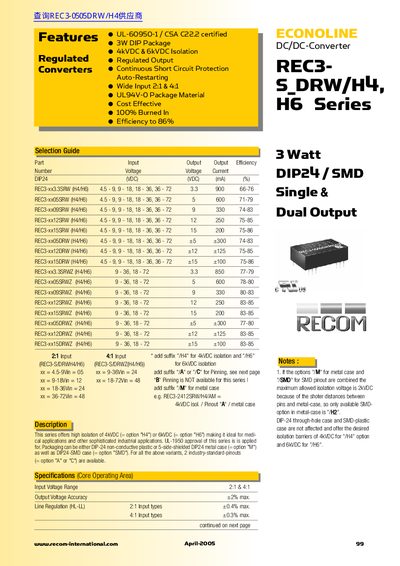

This document provides specifications for 3 Watt DIP24 / SMD Single & Dual Output ECONOLINE DC / DC-Converter REC3-S_DRW / H4, H6 series, including input voltage range, output voltage accuracy, line regulation, continuous short circuit protection, auto-restarting, wide input 2:1 and 4:1, UL94V-0 package material, cost effective, 100% burned-in and efficiency up to 86%.
This document describes the REC3-S DRW/H4 and H6 Series of 3 Watt DC/DC converters manufactured by RECOM. The devices are available in DIP-24 through-hole packages, SMD plastic cases, and metal shielded cases. They feature regulated outputs with continuous short-circuit protection and auto-restarting capabilities.
| Isolation Voltage (H4) | 4,000VDC min. |
|---|---|
| Isolation Voltage (H6) | 6.000VDC min. |
| Output Ripple and Noise | 50mVp-p max. |
| Operating Temperature Range | -25°C to +85°C |
Yes, it features continuous short-circuit protection with auto-restarting.
The output voltage accuracy is plus or minus 2 percent maximum.
The output ripple and noise is 50 millivolts peak-to-peak maximum.
The isolation resistance is 1 gigaohm minimum.
