M3000 Block & Level Diagram

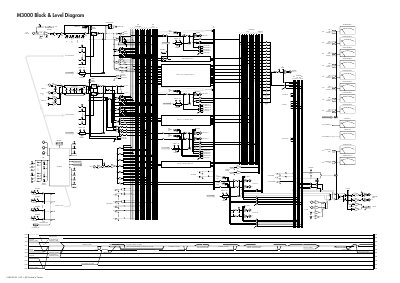

This document provides a block-level schematic of an audio mixing console, illustrating the routing of signals from inputs through various processing stages such as EQ, VCA, and matrix outputs. It visually maps connections between channels, stereo buses, subgroups, and monitor mixes.
The diagram includes specific technical data regarding signal levels, gain ranges, and voltage thresholds for different components like input pads, channel faders, and output meters. It serves as a reference guide for understanding the internal architecture and electrical characteristics of the M3000 unit.
