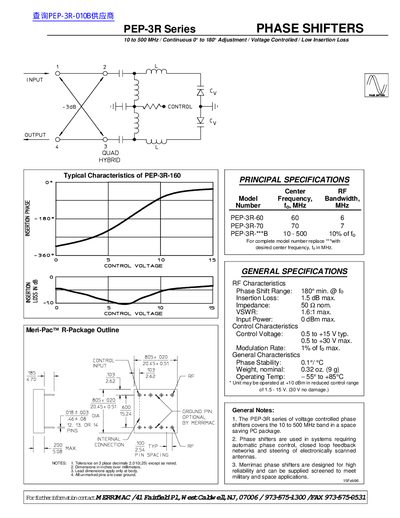

This document describes the features and characteristics of PEP-3R-160 PEP-3R series phase shifters, including frequency range, phase shift range, insertion loss, etc.
The Merrimac PEP-3R Series consists of voltage controlled phase shifters designed for the 10 to 500 MHz frequency band. These devices offer continuous phase adjustment from 0° to 180° and feature low insertion loss, making them suitable for high-reliability applications.
| Frequency Range | 10 to 500 MHz |
|---|---|
| Phase Shift Range | 0° to 180° |
| Control Voltage | 0.5 to +15 V typ. |
| Modulation Rate | 1% of fo max. |
| Phase Stability | 0.197 °C |
| Operating Temperature | -55° to +85°C |
The phase shift range is a minimum of 180° at the center frequency.
The typical control voltage range is 0.5 to +15 V.
