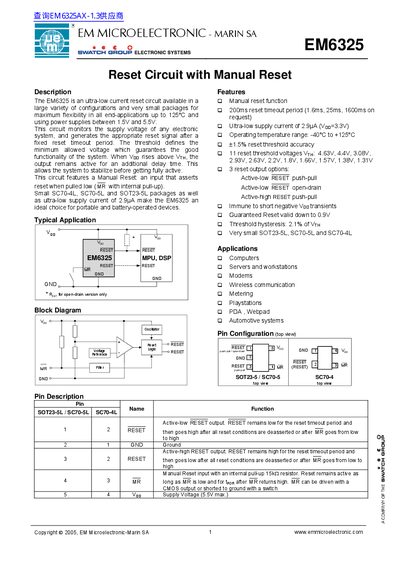

The EM6325 is an ultra-low current reset circuit from EM Microelectronic-Marin SA. It features a manual reset function and can be configured with a reset timeout period of 200ms, 1.6ms, 25ms, or 1600ms. The circuit can operate in temperatures ranging from -40°C to +125°C and supports power supply voltages between 1.5V and 5.5V. The EM6325 has an operating current of 2.9μA, making it ideal for portable and battery-operated devices.
The EM6325 is an ultra-low current reset circuit designed for use with power supplies between 1.5V and 5.5V. It monitors supply voltage and generates a reset signal after a fixed timeout period, featuring options for active-high or active-low outputs and manual reset functionality.
| Supply Voltage Range | 1.5V to 5.5V |
|---|---|
| Operating Temperature Range | -40°C to +125°C |
| Supply Current (Typical) | 2.9µA |
| Package Types | SOT23-5L, SC70-4L, SC70-5L |
The device operates with power supplies between 1.5V and 5.5V.
The EM6325 is available in SOT23-5L, SC70-4L, and SC70-5L packages.
