The EM6132K800W is a low power SRAM in the EM6132K series with a capacity of 32K bytes and a data width of 8 bits. It operates at a voltage range of 2.7V to 5.5V and consumes 20mA (typical) of operating current and 1µA (typical) of standby current.

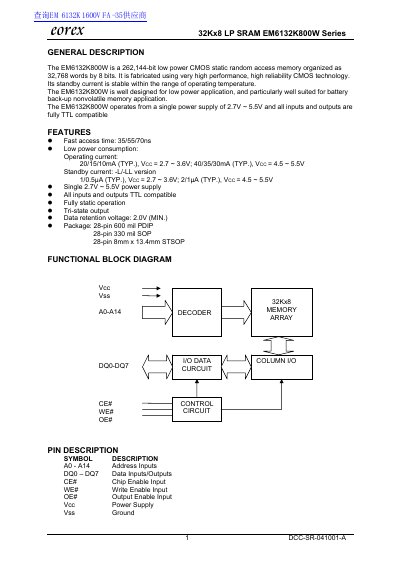

The Eorex EM6132K800W is a 262,144-bit low power CMOS static random access memory organized as 32,768 words by 8 bits. It is fabricated using high performance, high reliability CMOS technology and is well suited for low power applications, particularly battery back-up nonvolatile memory applications. The device operates from a single power supply of 2.7V to 5.5V, and all inputs and outputs are fully TTL compatible.
| Memory Organization | 32,768 words by 8 bits |
|---|---|
| Supply Voltage | 2.7V ~ 5.5V |
| Operating Temperature | -40 to 85°C |
| Access Time | 35/55/70ns |
| Operating Current (Typ.) | 20/15/10mA @ 2.7~3.6V |
| Standby Current (-L version) | 1µA @ 2.7~3.6V |
| Package Types | 28-pin PDIP, SOP, STSOP |
| Input/Output Compatibility | TTL compatible |
The typical operating current is 20mA at 2.7V to 3.6V.
Yes, it is particularly well suited for battery back-up nonvolatile memory applications.
The minimum data retention voltage is 2.0V.
