eLED E914 Series 2x3mm Rectangular Solid Lamps Datasheet

This datasheet provides the specifications of E914-1/5 series LED, including product size, color, luminous angle, luminous flux and other information.

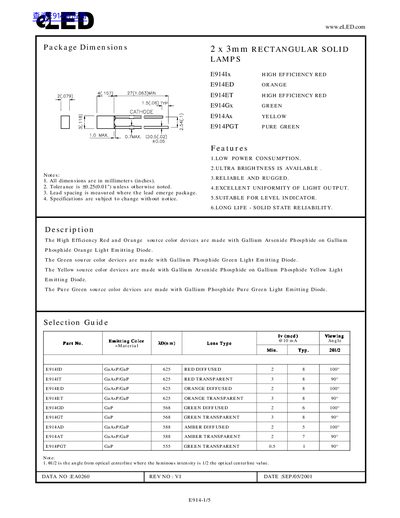

eLED E914 Series 2x3mm Rectangular Solid Lamps Datasheet - cover page
Brand
eLED
Category
LED Driver Controller
Document type
Datasheet
Language
English
Pages
5
File format
PDF
File size
167 KB
Published
11 June, 2012
Updated
30 September, 2023
MD5 checksum
5F67C255A360EE8BBB05A15FD996A74B
PDF
eLED E914 Series 2x3mm Rectangular Solid Lamps Datasheet PDF

About this manual

This document provides technical specifications for the eLED E914 series of 2x3mm rectangular solid lamps. The product line includes High Efficiency Red, Orange, Green, Yellow, and Pure Green variants available in both diffused and transparent lens types.

The datasheet details electrical and optical characteristics at a temperature of 25°C, including peak wavelengths, forward voltage ranges, reverse current limits, and power dissipation ratings. It also presents absolute maximum ratings for DC forward current, peak forward current, and operating temperatures.

What's inside

  • Package Dimensions
  • Features
  • Description
  • Selection Guide
  • Electrical/Optical Characteristics
  • Absolute Maximum Ratings
  • Luminous Intensity Curves

Specifications

Package Dimensions (mm)2 x 3
Operating Temperature Range-40°C to +85°C

Frequently asked questions

What is the maximum DC forward current for High Efficiency Red, Orange, and Pure Green lamps?

The maximum DC forward current is 30 mA.

What are the operating temperature limits for these lamps?

The lamps operate between -40°C and +85°C.
