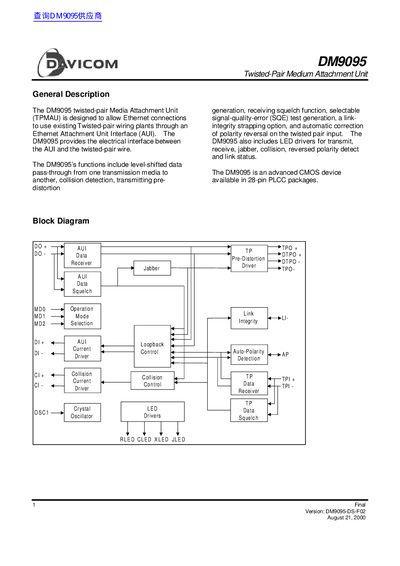

The DM9095 is a Twisted-Pair Medium Attachment Unit (TPMAU) product that connects to Ethernet and is compatible with IEEE 802.3 standards.
The DM9095 is an advanced CMOS device available in 28-pin PLCC packages designed to allow Ethernet connections to use existing Twisted-pair wiring plants. It provides the electrical interface between the Attachment Unit Interface (AUI) and the twisted-pair wire, supporting IEEE 802.3 standards for AUI and 10BASE-T interfaces.
Key features include an internal pre-distortion generator for the TP driver, smart squelch circuitry on all received data, selectable heartbeat function, and selectable line-integrity test with LED indication. The device also offers advanced analog CMOS process using a single 5V supply and includes full ESD protection.
| Package Type | 28-pin PLCC |
|---|---|
| Data Rate | 10 Mbits/s |
| Crystal Frequency | 20MHz |
Yes, it includes automatic correction of polarity reversal on the twisted pair input with an LED indication option.
In power-down mode, the supply current is reduced to less than 10uA.
