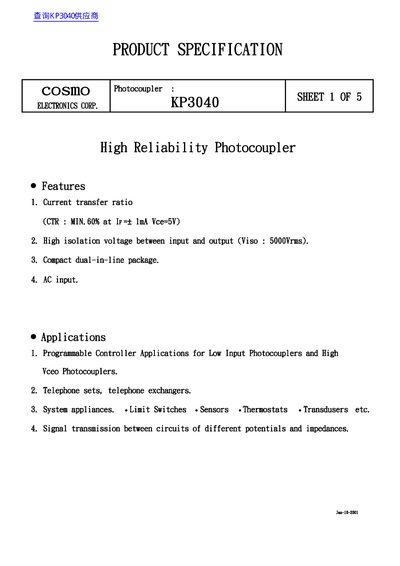

This document is a product specification sheet for the Cosmo Electronics Corp. KP3040, a high reliability photocoupler designed with AC input capabilities. It features a compact dual-in-line package and offers high isolation voltage between input and output.
The datasheet provides absolute maximum ratings, electro-optical characteristics, and graphical data regarding current transfer ratios, power dissipation, response times, and operating temperatures.
| Current transfer ratio (CTR) | MIN. 60% at Ir=+1mA Vce=5V |
|---|---|
| Isolation voltage | 5000Vrms |
| Collector-emitter voltage | 60 V |
| Forward current (Ir) | + 50 mA |
The minimum current transfer ratio is 60% when the input current is 1 mA and the collector-emitter voltage is 5 V.
The maximum collector current rating is 50 mA.
