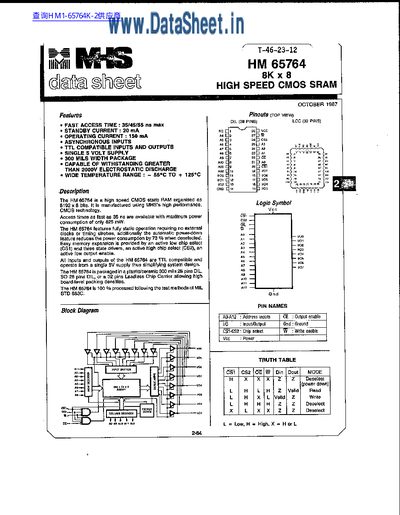

The MHS HM 65764 is a high-performance static random access memory (SRAM) organized as 8192 x 8 bits. Manufactured using MHS's high-performance CMOS technology, it offers fully static operation requiring no external clocks or timing strobes. The device features automatic power-down capabilities to reduce power consumption by up to 73% when deselected.
| Organization | 8192 x 8 bits |
|---|---|
| Access Time (Commercial) | 35 ns max |
| Operating Voltage | Single 5 V supply |
| Standby Current | 20 mA max |
| Operating Current | 150 mA max |
| ESD Rating | > 2000V |
| Operating Temperature (Military) | -55°C to +125°C |
The maximum power consumption is only 25 mW.
Yes, all inputs and outputs are TTL compatible.
The automatic power-down feature reduces power consumption by 73% when deselected.
