HG4183 is a miniature PCB power relay with short operating time, high insulation resistance, high surge resistance, good shock resistance, good vibration resistance, wide working temperature range, and is suitable for various circuits.

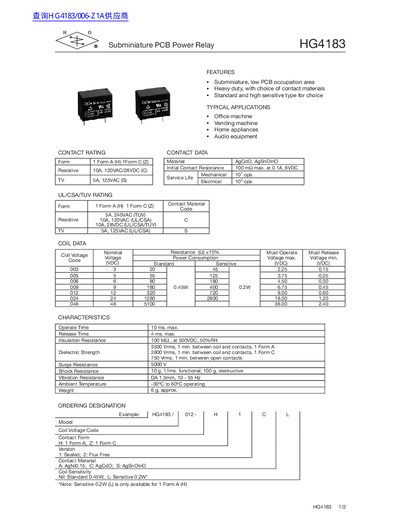

The HG HG4183 is a subminiature PCB power relay designed for low PCB occupation area. It is available in standard and high sensitive types with a choice of contact materials including AgCdO, AgSnOInO, and AgNi0.15. The device is suitable for applications in office machines, vending machines, home appliances, and audio equipment.
| Contact Material | AgCdO, AgSnOInO, AgNi0.15 |
|---|---|
| Mechanical Service Life | 10^6 ops. |
| Electrical Service Life | 10^5 ops. |
| Operate Time | 10 ms. max. |
| Release Time | 4 ms. max. |
| Weight | 6 g, approx. |
| Ambient Temperature | -30°C to 60°C |
Typical applications include office machines, vending machines, home appliances, and audio equipment.
Available contact materials include AgCdO, AgSnOInO, and AgNi0.15.
The mechanical service life is rated for 10^6 operations.
