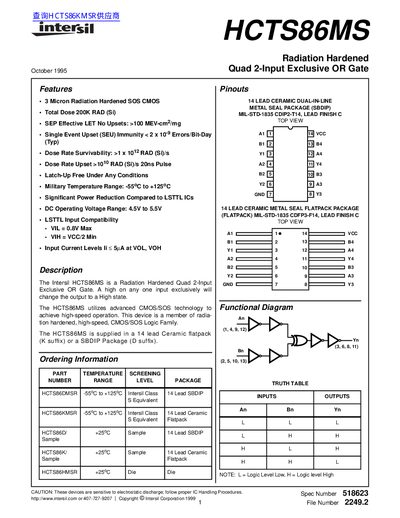

This document is the datasheet of Intersil HCTS86MS Radiation Hardened Quad 2-Input Exclusive OR Gate.
The Intersil HCTS86MS is a Radiation Hardened Quad 2-Input Exclusive OR Gate utilizing advanced CMOS/SOS technology. It is designed for high-speed operation within the radiation hardened, high-speed, CMOS/SOS Logic Family.
The device operates over a military temperature range of -55°C to +125°C and features significant power reduction compared to LSTTL ICs. It offers Total Dose survivability up to 200K RAD (Si) with Single Event Upset immunity.
| Technology | + 3 Micron Radiation Hardened SOS CMOS |
|---|---|
| Total Dose Survivability | >100 MEV-cm²/mg (SEP Effective LET No Upsets) |
| Single Event Upset Immunity | < 2 x 10⁻⁶ Errors/Bit-Day (Typ) |
| Dose Rate Survivability | >1 x 10¹⁰ RAD (Si/s) |
| Latch-Up Free Condition | Under Any Conditions |
| Operating Temperature Range | -55°C to +125°C |
| DC Operating Voltage Range | 4.5V to 5.5V |
| Input Low Voltage (Max) | 0.8V |
| Input High Voltage (Min) | VCC/2 |
The device is supplied in a 14 lead Ceramic flatpack (K suffix) or a SBDIP Package (D suffix).
Yes, it has LSTTL input compatibility.
