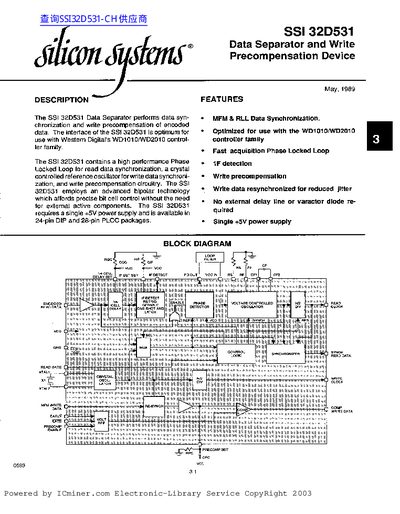

This is a pdf document that provides information about the SSI32D531-CH chip.
The SSI 32D531 is an integrated circuit designed to perform data synchronization and write precompensation of encoded data. It features a high-performance Phase Locked Loop (PLL) for read data synchronization and utilizes a crystal-controlled reference oscillator for write functions.
The device requires only a single +5V power supply and contains no external active components, such as delay lines or varactor diodes. It is available in 24-pin DIP and 28-pin PLCC packages.
| Operating Temperature Range | 0 to +70 °C |
|---|---|
| Junction Operating Temperature | 0 to +130 °C |
| Maximum Power Dissipation | 800 mW |
| Package Types | 24-pin DIP and 28-pin PLCC |
It is optimized for use with Western Digital's WD10104VD2010 controller family.
No, it employs advanced bipolar technology that affords precise bit cell control without the need for external active components.
It provides a flag that indicates a continuous stream of '1's or '0's in the encoded read data.
