This datasheet provides information about SMA5103, including maximum operating voltage, maximum operating current, switching loss, and operating temperature range.

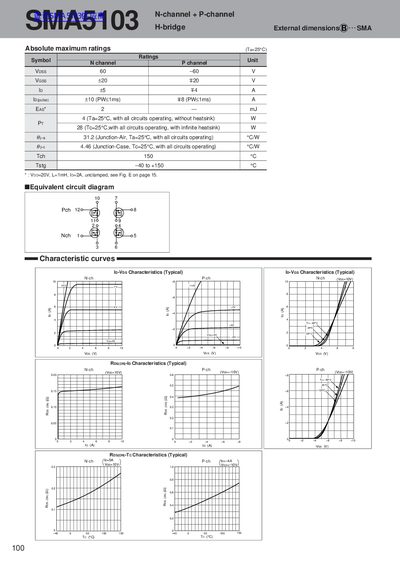

This document provides the specifications, characteristics, and ratings for the SMA5103 N-channel P-channel H-bridge. It includes typical characteristic curves such as ID-VDS, ID-VGS, and RDS(ON)-ID, along with Safe Operating Area (SOA) and capacitance data.
| Drain-Source Voltage (VDS) | 60 V |
|---|---|
| Gate-Source Voltage (VGSS) | ±20 V |
| Junction Temperature (Tj) | 150 °C |
| Storage Temperature (Tstg) | -40 to +150 °C |
| On-Resistance (RDS(ON)) | 0.17 Ω |
| Input Capacitance (Ciss) | 300 pF |
| Output Capacitance (Coss) | 160 pF |
The maximum junction temperature is 150 °C.
The typical on-resistance is 0.17 Ω.
The storage temperature range is -40 to +150 °C.
