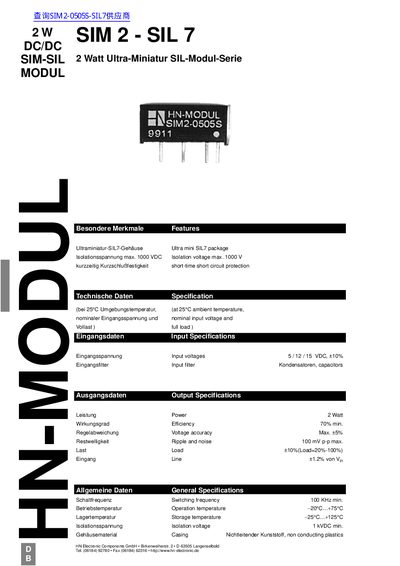

HN-MODUL SIM 2 - SIL 7 2 Watt Ultra-Miniatur SIL-Modul-Serie is a 2 Watt DC/DC power module with ultra mini SIL7 package, max. 1000 VDC isolation voltage, short time short circuit protection and other features.
This document is a technical datasheet for the SIM2 - SIL 7 series of DC/DC converters manufactured by HN Electronic Components GmbH. It describes an ultra-miniature module series with an isolation voltage of up to 1000 VDC and short-circuit protection.
The datasheet provides detailed input and output specifications, including power ratings of 2 Watts and efficiency of at least 70%. It lists various model numbers such as SIM2-0505S-SIL7 and includes a table for dual-output configurations. A pin assignment diagram and mechanical drawing with dimensions are also provided. This manual is written in German.
| Power | 2 Watt |
|---|---|
| Efficiency | 70% min. |
| Voltage accuracy | Max. +5% |
| Ripple and noise | 100 mV p-p max. |
| Switching frequency | 100 KHz min. |
| Operation temperature | -20°C...+75°C |
| Isolation voltage | 1kVDC min. |
The device provides a power rating of 2 Watt.
The unit has an efficiency of at least 70%.
