PG124S15 (10A) (1500V / 10A ) is a TO-3PF package zener diode with high suppression capability, widely used in high-voltage applications such as high-definition TV and high-resolution display.

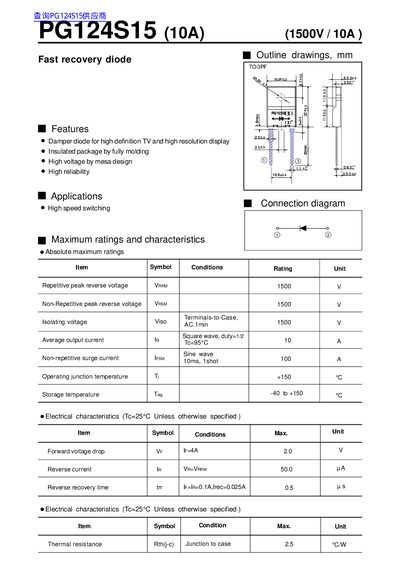

The document describes the ZS PG124S15 (10A) Fast Recovery Diode, an insulated package component designed as a damper diode for high definition TVs. It features a mesa design for high voltage capability and is intended for high-speed switching applications in high-resolution displays.
| Repetitive peak reverse voltage | 1500 V |
|---|---|
| Average output current | 10 A |
| Non-repetitive surge current | 100 A |
| Operating junction temperature | +150 °C |
| Forward voltage drop (max) | 2.0 V |
| Reverse recovery time (typ) | 0.5 us |
The absolute maximum rating for repetitive peak reverse voltage is 1500 V.
The diode can handle an average output current of 10 A when the duty cycle is 1/e.
The device can operate at a junction temperature up to +150 °C.
