NTE Electronics NTE1237 Integrated Circuit AM Radio without Audio Stage Datasheet

NTE1237 is an integrated circuit AM radio without audio stage. It features a small external part count, tuning meter circuit, and wide AGC range.

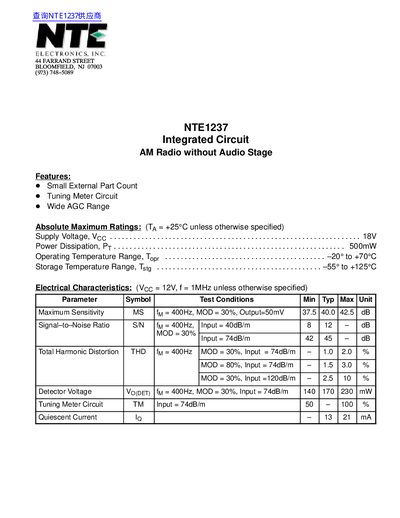

NTE Electronics NTE1237 Integrated Circuit AM Radio without Audio Stage Datasheet - cover page
Brand
NTE1237
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
2
File format
PDF
File size
19 KB
Published
11 June, 2012
Updated
29 September, 2023
MD5 checksum
83BE3970BD5F8C805BACD1C2CF4C8D95
PDF
NTE Electronics NTE1237 Integrated Circuit AM Radio without Audio Stage Datasheet PDF

About this manual

This document is a datasheet for the NTE1237 integrated circuit from NTE Electronics. The device functions as an AM radio receiver that does not include an audio output stage.

Key features highlighted in the text include a small external part count, a tuning meter circuit, and a wide Automatic Gain Control (AGC) range.

What's inside

  • Features
  • Absolute Maximum Ratings
  • Electrical Characteristics
  • Pin Connection Diagram

Specifications

Supply Voltage18V Max
Power Dissipation500mW
Operating Temperature Range-20° to +70°C
Storage Temperature Range-55° to +125°C
Quiescent Current13 mA Typ
