MQ115 Series Telephone Switch System IDC Connector Datasheet

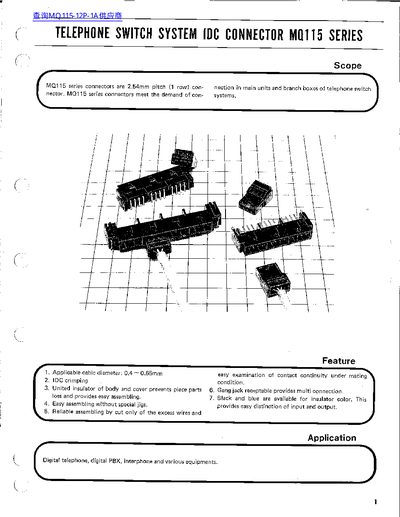

MQ115 Series Telephone Switch System IDC Connector Datasheet - cover page
Brand
TELEPHONE
Document type
Datasheet
Language
English
Pages
6
File format
PDF
File size
230 KB
Published
11 June, 2012
Updated
11 June, 2012
MD5 checksum
5C4B28DA0452014984E1ECECFF4B52EC
PDF
MQ115 Series Telephone Switch System IDC Connector Datasheet PDF

About this manual

This document describes the MQ115 series of IDC (Insulation Displacement Connection) connectors designed for use in main units and branch boxes of telephone switch systems. The series features a 2.54mm pitch with one row of contacts and is available as either straight or right-angle dip types.

What's inside

  • Scope
  • Feature
  • Application
  • Electric Performance
  • Material & Finish
  • Ordering Information
  • Assembling Procedure

Specifications

Pitch2.54mm (1 row)
Applicable cable diameter0.4 ~ 0.65mm
Current rating2A
Rated voltageAC 250V
Insulation resistanceMin. 100MΩ at DC 500V
Contact resistanceMax. 30mΩ at DC 100mA

Frequently asked questions

What is the current rating for MQ115 series connectors?

The standard valve specifies a current rating of 2A.

What are the available insulation colors for these connectors?

Insulators are available in black and blue to distinguish input and output.

What is the maximum contact resistance at DC 100mA?

The maximum contact resistance is 30mΩ at DC 100mA.
