Aimtron AT1396A/B/C/D Preliminary Product Information 6-Channel DC-DC Converter Datasheet

The AT1396A/B/C/D is a 6-channel DC-DC converter from Aimtron. It can be used for CCD bias, LED driver, etc.

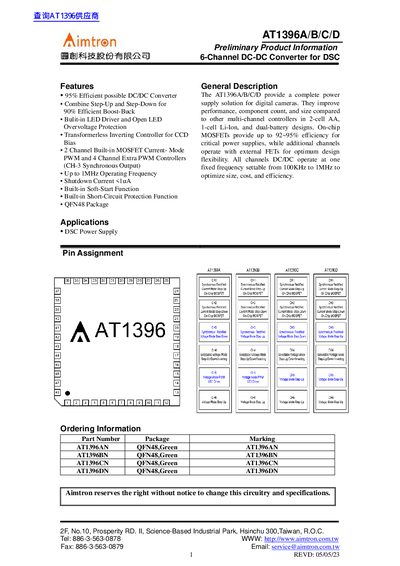

Aimtron AT1396A/B/C/D Preliminary Product Information 6-Channel DC-DC Converter Datasheet - cover page
Brand
Aimtron
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
24
File format
PDF
File size
805 KB
Published
11 June, 2012
Updated
30 September, 2023
MD5 checksum
2F22EB20710147839CFF8DC0C794A17B
PDF
Aimtron AT1396A/B/C/D Preliminary Product Information 6-Channel DC-DC Converter Datasheet PDF

About this manual

The Aimtron AT1396A/B/C/D is a 6-channel DC/DC converter designed specifically as a complete power supply solution for digital cameras (DSC). It integrates on-chip MOSFETs for high-efficiency operation, achieving up to 95% efficiency in step-up configurations and combining step-up and step-down modes for boost-buck applications. The device supports operating frequencies from 100kHz to 1MHz.

What's inside

  • Features
  • Applications
  • General Description
  • Pin Assignment
  • Absolute Maximum Ratings
  • Electrical Characteristics

Specifications

Operating Temperature-30~+85 C
Storage Temperature-55~ +150 C
Maximum Efficiency (Step-Up)95%
Operating Frequency Range100KHz to 1MHz
Package TypeQFN48
Shutdown Current<1uA

Frequently asked questions

What is the maximum input voltage for Channel 1?

Channel 1 accepts an input voltage up to 6.0 V.

How much current can the N-channel output handle in Channel 3?

The N-channel output current limit is 2.4 A.
